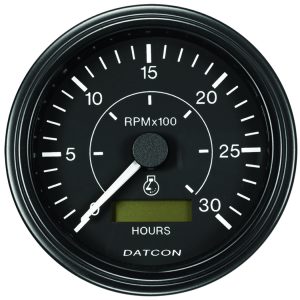

Tachometer with Hourmeter, P/N 123059
Model: Analog II, Scale: 0-3000 RPM, Voltage: 12-24 VDC, Bezel: Black (SAE),
Contact maximatecc about P/N #123059
Specification
P/N: | 123059 |
Type: | Tachometer |
Type Description: | Tachometer with Hourmeter |
Scale: | 0-3,000 RPM |
Diameter, in: | 86 mm |
Bezel/Finish: | SAE Black |
Ohms: | N/A |
Volt/Watt/Current: | 12-24 VDC |
Product Family: | Analog II |
Brand: | DATCON |
Notes: | *1 = SAE = SAE Step Bezel, DD = Deep Draw bezel. Hourmeter maximum hour reading is 99,999.9. For appropriate speed sensor, please see the Senders & Sensors section. For pulse generators and drive tangs, please see Accessories section. Instruments listed above are internally illuminated by LEDs on the circuit. No light kit options are available. For panel kits and other options, please see Accessories section. See other sections for cosmetically matching 2” gauges. |
