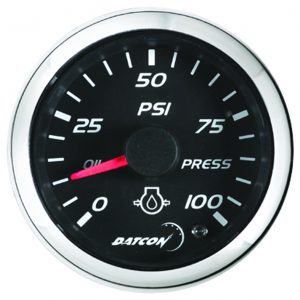

Pressure – Oil, P/N 115177

Scale: 0-100 PSI, Voltage: 12 V, Bezel: LP Polished, ON/OFF Setpoints: DM1 from ECM,



Contact maximatecc about P/N #115177

Specification

P/N: 115177
Type: Pressure
Type Description: Pressure Gauge – Oil
Scale: 0-100 PSI
Diameter, in: 2-1/16"
Bezel/Finish: LP Polished
Ohms: N/A
Volt/Watt/Current: 12 V
Product Family: DDBI J1939
Brand: DATCON
Notes: Regular-, heavy- and severe-duty sending units are available for electrical gauges listed above. Please see Pressure Sender section. SAE = SAE Step Bezel, LP = Low Profile bezel. Red warning LED included. Amber backlight color standard, other backlight colors available – please consult your maximatecc salesperson. For information regarding specifications not listed in the table above, please consult with your maximatecc salesperson. Instruments listed above are internally illuminated by LEDs on the circuit. No light kit options are available.
