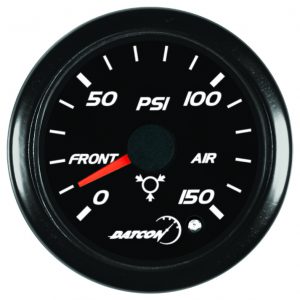

Pressure – Air, P/N 117727

Scale: 0-150 PSI, Ohms: 240-33.5, Voltage: 12 V, Bezel: LP Black, Type: Front,



Contact maximatecc about P/N #117727

Specification

P/N: 117727
Type: Pressure
Type Description: Pressure Gauge – Air
Scale: 0-150 PSI
Diameter, in: 2-1/16"
Bezel/Finish: LP Black
Ohms: 240-33.5
Volt/Watt/Current: 12 V
Product Family: DDBI Analog
Brand: DATCON
Notes: Regular-, heavy- and severe-duty sending units are available for electrical gauges listed here. Please see Pressure Sender section. SAE = SAE Step Bezel, LP = Low Profile bezel. Red warning LED included. Amber backlight color standard, other backlight colors available – please consult your maximatecc salesperson. For information regarding specifications not listed in the table above, please consult with your maximatecc salesperson. Instruments listed above are internally illuminated by LEDs on the circuit. No light kit options are available. For panel kits and other options, please see Accessories section.
